Quick Example

In this notebook, we are going to see how to quickly use dfcosmic for cosmic ray removal using the original HST WFC data from van Dokkum 2001. The parameters are set from that paper.

For a detailed comparison on this dataset for the different python implementations of cosmic ray removal, check out the HST.ipynb file.

from astropy.io import fits
import numpy as np
from dfcosmic import lacosmic
import matplotlib.pyplot as plt
import cmcrameri.cm as cmc

# Get data and pre-computed IRAF Mask
data = fits.getdata("./hst_im_ext3.fits").astype(np.float32)
iraf_mask = fits.getdata("./hst_im_ext3_iraf_mask.fits").astype(np.uint8)

# Compute dfcosmic mask
df_cosmic_result, df_cosmic_mask = lacosmic(
    data,
    sigclip=4.5,
    sigfrac=0.3,
    objlim=4,
    readnoise=5,
    gain=7,
    niter=4,
    device="cpu",
    use_cpp=True,
    verbose=False,
)

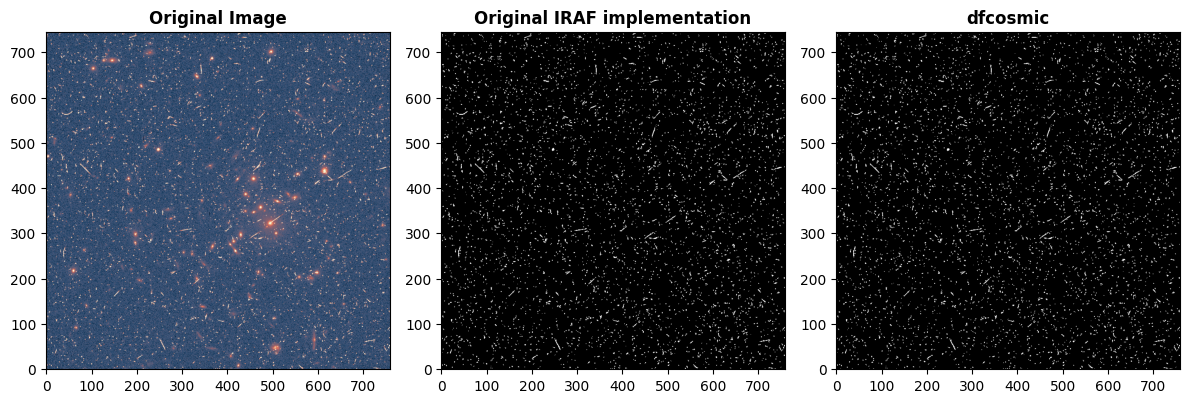

# Plot full image

fig, axs = plt.subplots(ncols=3, nrows=1, figsize=(12, 8))
axs[0].imshow(
    np.log10(data),
    cmap=cmc.lipari,
    origin="lower",
    vmin=1,
    vmax=2,
)
axs[0].set_title("Original Image", fontweight="bold")

axs[1].imshow(iraf_mask, cmap=cmc.grayC, origin="lower")
axs[1].set_title("Original IRAF implementation", fontweight="bold")

axs[2].imshow(
    df_cosmic_mask, cmap=cmc.grayC, origin="lower"
)
axs[2].set_title("dfcosmic", fontweight="bold")


plt.tight_layout()
plt.savefig("example_hst.png", dpi=600)

/tmp/ipykernel_35256/1015838363.py:5: RuntimeWarning: invalid value encountered in log10
  np.log10(data),

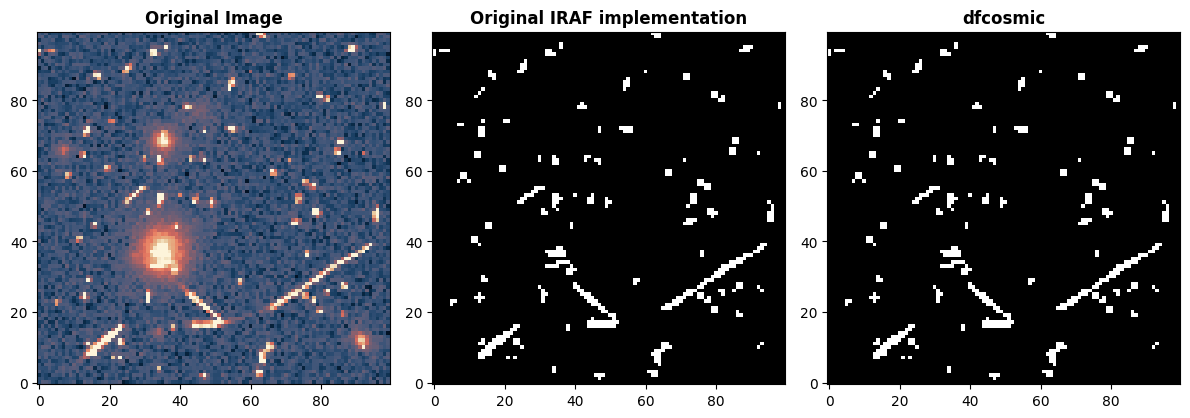

# Plot small region
x_min = 580
x_max = 680
y_min = 400
y_max = 500

fig, axs = plt.subplots(ncols=3, nrows=1, figsize=(12, 8))
axs[0].imshow(
    np.log10(data)[y_min:y_max, x_min:x_max],
    cmap=cmc.lipari,
    origin="lower",
    vmin=1,
    vmax=2,
)
axs[0].set_title("Original Image", fontweight="bold")

axs[1].imshow(iraf_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower")
axs[1].set_title("Original IRAF implementation", fontweight="bold")

axs[2].imshow(
    df_cosmic_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower"
)
axs[2].set_title("dfcosmic", fontweight="bold")


plt.tight_layout()
plt.savefig("example_hst.png", dpi=600)

/tmp/ipykernel_35256/2835566351.py:9: RuntimeWarning: invalid value encountered in log10
  np.log10(data)[y_min:y_max, x_min:x_max],
