HST Example

Example of the dfcosmic algorithm compared to the original IRAF implementation as well as astroscrappy and lacosmic.

We use the same HST WFPC2 image of galaxy cluster MS 1137+67 as shown in Figure 6 of van Dokkum 2001.

The data for this example lives in demos/.

from astropy.io import fits
import numpy as np
from lacosmic import remove_cosmics
from dfcosmic import lacosmic as df_lacosmic
from astroscrappy import detect_cosmics
import matplotlib.pyplot as plt
import cmcrameri.cm as cmc

# Get data and pre-computed IRAF Mask
data = fits.getdata("../../../demos/hst_im_ext3.fits").astype(np.float32)
iraf_mask = fits.getdata("../../../demos/hst_im_ext3_iraf_mask.fits").astype(np.uint8)

# Compute dfcosmic mask
df_cosmic_result, df_cosmic_mask = df_lacosmic(
    data,
    sigclip=4.5,
    sigfrac=0.3,
    objlim=4,
    readnoise=5,
    gain=7,
    niter=4,
    device="cpu",
    use_cpp=True,
    verbose=False,
)

# Compute astroscrappy mask with sepmed=True
astroscrappy_mask, astroscrappy_result = detect_cosmics(
    data, sigclip=4.5, sigfrac=0.3, objlim=4, readnoise=5, gain=7, niter=4, sepmed=True
)

# Compute astroscrappy mask with sepmed=False
astroscrappy_nosepmed_mask, astroscrappy_nosepmed_result = detect_cosmics(
    data, sigclip=4.5, sigfrac=0.3, objlim=4, readnoise=5, gain=7, niter=4, sepmed=False
)

# Compute lacosmic
lacosmic_result, lacosmic_mask = remove_cosmics(
    data=data,
    contrast=4,
    cr_threshold=0.3,
    neighbor_threshold=4.5,
    readnoise=5,
    effective_gain=7,
    maxiter=4,
)

INFO: Iteration 1: Found 12245 cosmic-ray pixels, Total: 12245 [lacosmic.core]
INFO: Iteration 2: Found 4237 cosmic-ray pixels, Total: 16482 [lacosmic.core]
INFO: Iteration 3: Found 592 cosmic-ray pixels, Total: 17074 [lacosmic.core]
INFO: Iteration 4: Found 82 cosmic-ray pixels, Total: 17156 [lacosmic.core]

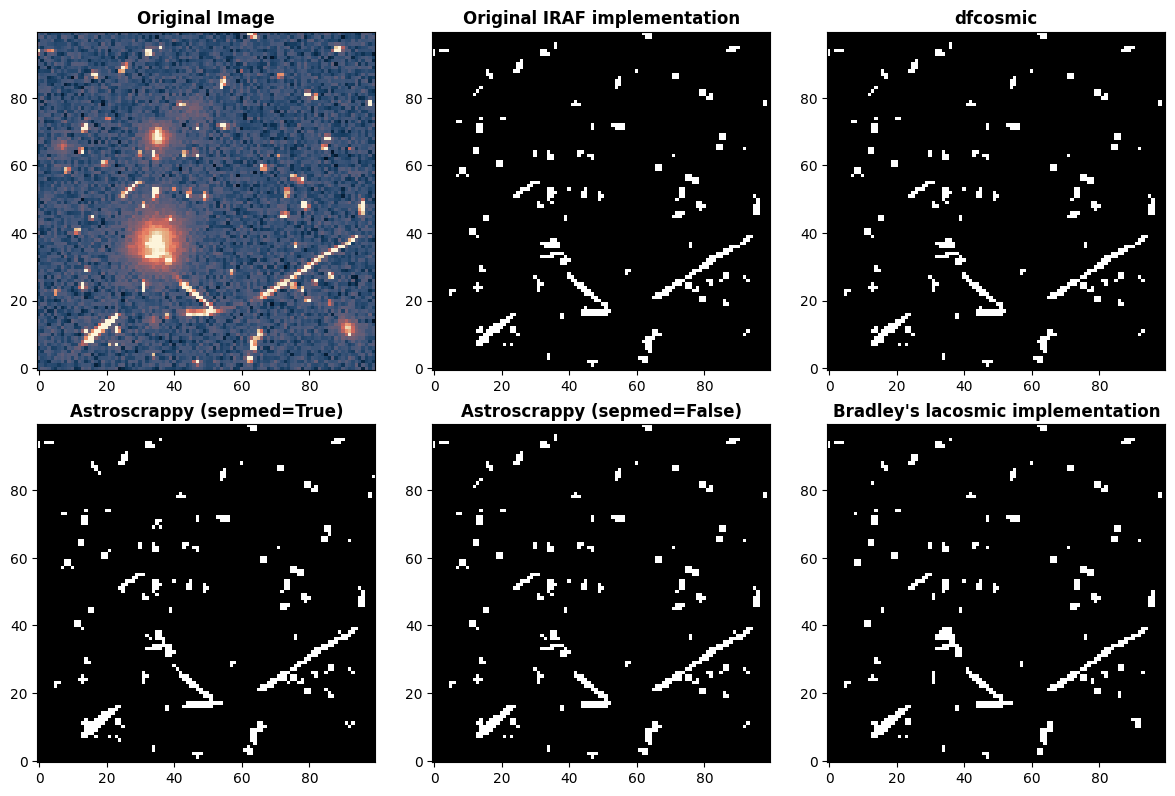

# Plot small region
x_min = 580
x_max = 680
y_min = 400
y_max = 500

fig, axs = plt.subplots(ncols=3, nrows=2, figsize=(12, 8))
axs[0, 0].imshow(
    np.log10(data)[y_min:y_max, x_min:x_max],
    cmap=cmc.lipari,
    origin="lower",
    vmin=1,
    vmax=2,
)
axs[0, 0].set_title("Original Image", fontweight="bold")

axs[0, 1].imshow(iraf_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower")
axs[0, 1].set_title("Original IRAF implementation", fontweight="bold")

axs[0, 2].imshow(
    df_cosmic_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower"
)
axs[0, 2].set_title("dfcosmic", fontweight="bold")

axs[1, 0].imshow(
    astroscrappy_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower"
)
axs[1, 0].set_title("Astroscrappy (sepmed=True)", fontweight="bold")

axs[1, 1].imshow(
    astroscrappy_nosepmed_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower"
)
axs[1, 1].set_title("Astroscrappy (sepmed=False)", fontweight="bold")

axs[1, 2].imshow(
    lacosmic_mask[y_min:y_max, x_min:x_max], cmap=cmc.grayC, origin="lower"
)
axs[1, 2].set_title("Bradley's lacosmic implementation", fontweight="bold")

plt.tight_layout()
plt.savefig("example_hst.png", dpi=600)

/tmp/ipykernel_796665/1400442412.py:8: RuntimeWarning: invalid value encountered in log10
  axs[0, 0].imshow(np.log10(data)[y_min:y_max, x_min:x_max], cmap=cmc.lipari, origin='lower', vmin=1, vmax=2)
